Laminar Air Flow Manufacturer

Laminar-air-flow-manufacturer-in-bangalore
Laminar-air-flow-manufacturer-in-bangalore

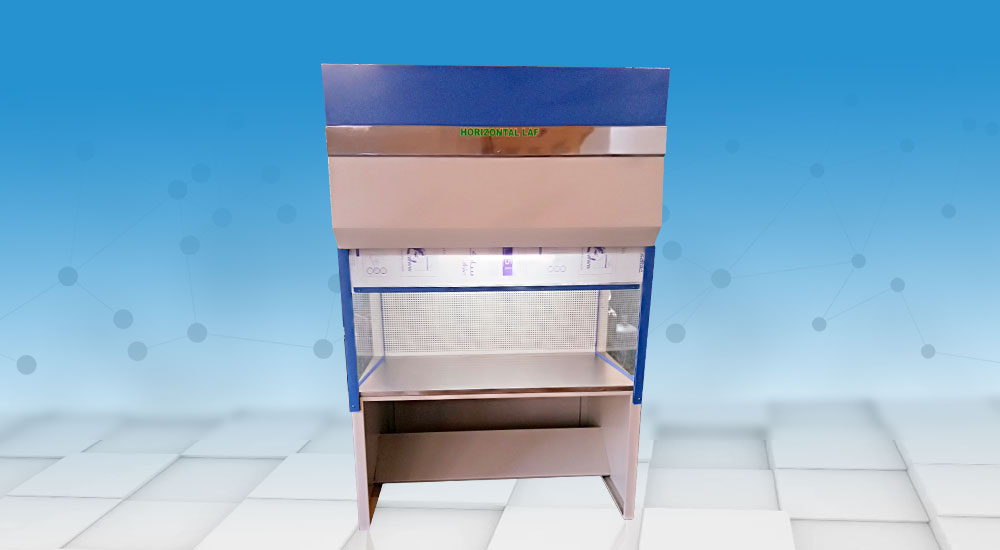

Laminar Air Flow

Owing to perfection and quality-centric approach, we have achieved a strong place in the industry by offering an enormous assortment of Laminar Air Flow. These products are manufactured using optimum grade raw material with the help of advanced techniques. The products offered by us are the perfect choice of our clients amongst similar products accessible in the market. Apart from this, our clients can avail the entire array from us at leading market prices.

Key Features of Laminar Air Flow

  •     Long working life
  •     Simple operatio
  •     Rugged body structure

Horizontal Laminar Air Flow is widely applied in various hospitals, electronic industry and others. We use premium grade items and quality raw material which is tested on various quality parameters and ensure quality and long lasting durability.



Specifications of Horizontal Laminar Air Flow

Cleanliness
CLASS 100
Velocity
90 FPM + / -20%
Hepa Filter
Size and QTY. will depend on the Size selected
Particle retention
Above 0. 3 micron
Blower Assembly
1 / 3 HP, 1440 RPM
Noise level
65 decibel + / -5%
Rate of air flow
0. 40 to 0. 75 M / Sec. (90 FPM)
Vibration level
< 2. 5 micron

Laminar Air Flow Chamber is made available in vertical and horizontal models at reasonable market price. This air flow chamber is widely in high-tech manufacturing and assembly process such as semiconductor assembly, biotechnology, pharmaceutical, aerospace, food, medical devices and hospitals. Laminar Air Flow Chamber are also tested on various quality parameters to ensure smooth functioning and manufactured with Class 100 airflow in the work region in accordance to US FED STD 209.

Technical Specification

Air Velocity
Between 0.4 to 0.5 m/s with +/- 20%
HEPA Efficiency
99.997 % at 0.3 microns with DOP test
Pre filter Washable with a stoppage
up to 90 % at 5 microns
Sound Level
Less than 65 dB (A)
Light Intensity (Lux)
900 – 1300 Lux
Cleanliness
US Federal Standard 209 E
Class
100
Power Supply
220/240 V Single Ph, 50 Hz AC
